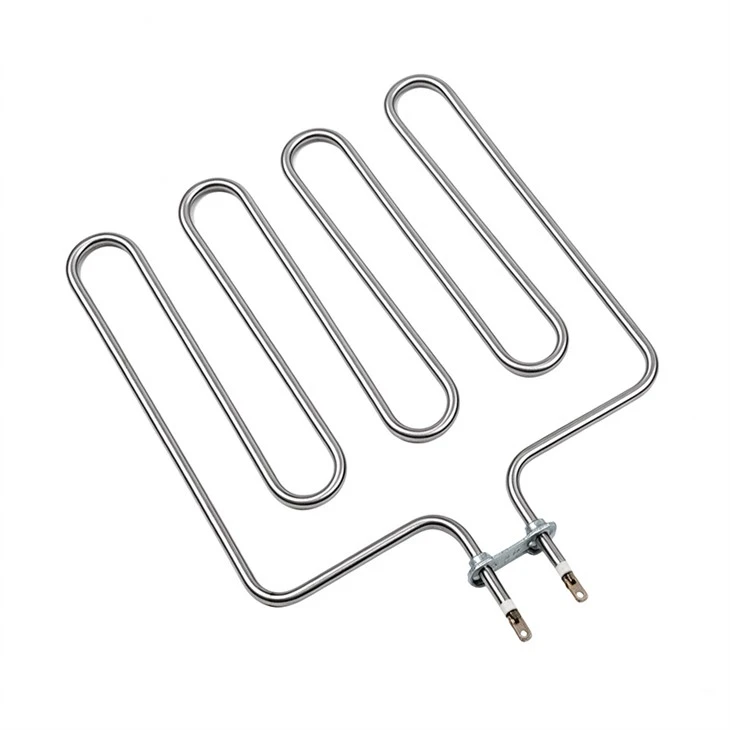

M Hom Customized Heating Tube yog cov khoom siv hluav taws xob ua cua sov uas tsim los rau hauv M- kev teeb tsa txuas ntxiv kom ua kom cov thermal hloov mus rau qhov chaw nyob hauv qhov txwv tsis pub hneev taw. Configured rau ncaj qha OEM kev koom ua ke rau hauv kev lag luam thiab kev lag luam thermal systems, txhua chav tsev yog engineered kom phim leej voltage, wattage, thiab seem txwv.
Ntsiab nta
Tshaj tawm thermal profile los ntawm kev ua kom zoo M- khoov geometry, tshem tawm cov chaw kub hauv cheeb tsam hauv chav cua sov.
Seamless hloov los ntawm rhuab active ntev mus rau txias unheated davhlau ya nyob twg zones, tiv thaiv hluav taws xob thaiv los ntawm overheat ambient kub.
Compact multi-pass configuration concentrates siab wattage tso zis mus rau hauv ntiav installation qhov tob.
Technical Specifications
|
Technical Parameter |
Specification Range / Standard |
|
Tube kab |
6.5 hli, 8.0mm, 8.5mm, 10.0mm, 12.0mm |
|
Cov ntaub ntawv Sheath |
Stainless hlau (304, 321, 316L), Incoloy 800, Titanium |
|
Voltage Ntau |
12V txog 480V (Ib zaug lossis Peb-theem teeb tsa) |
|
Wattage kam rau ua |
+5%, -10% |
|
Nto Watt Ceev |
Txog li 8 W / cm² (daim ntawv thov-nyob ntawm) |
|
Txias rwb thaiv tsev Resistance |
Ntau tshaj lossis sib npaug rau 1000 MΩ ntawm 500V DC |
|
Dielectric zog |
1500V AC / 1 min tsis muaj flashover |
|
Max Sheath Kub |
Txog li 800℃(khoom siv -nyob ntawm) |
|
Txoj Cai Ua Raws Cai |
CE, RoHS raws; UL- pom cov kev xaiv muaj |
Cov qauv khoom
Hlau Resistance:80/20 Nickel{2}}Chromium (Ni80Cr20) alloy coiled hlau, tsis kam-welded rau lub davhlau ya nyob twg pins.
Hluav taws xob rwb thaiv tsev:99.4% purity fused magnesium oxide (MgO) hmoov compacted ntawm multi-theem dov.
Sheath Tube:Seamless los yog welded hlau tubing kos rau cov phab ntsa nruj -thickness kam rau ua.
Xaus Sealing:High -kub silicone, epoxy, lossis ceramic terminal seals.
Terminals:Nickel{0}}plated steel threaded rods los yog crimped spade connectors.
Daim ntawv thov
Commercial catering khoom:Sib sib zog nqus fryers, hluav taws xob griddles, zaub mov tuav, chav rooj.
Industrial txheej txheem cua sov:Rwb thaiv tsev - cua tshuab cua sov, qhov cub convection, curing chambers.
Ntim Machinery:Thaum tshav kub kub-cov hlua khi, ntsws- qhwv qhov.
Pwm thiab platen cua sov:Insertion rau hauv drilled raws ntawm hlau cuab yeej blocks.
Customization Options
Dimensional Geometry:Kev cai khoov radii (2.5 × tube OD yam tsawg kawg nkaus), ceg sib nrug, thiab 3D multi- dav hlau dabtsi yog khoov cov ces kaum raws li CAD cov ntaub ntawv.
Txias Ntu:Customized unheated lengths ntawm lub davhlau ya nyob twg xaus los tiv thaiv lub thawv davhlau ya nyob twg overheating.
Kev kho deg:Passivation, dub oxidation, los yog electro{0}} polish tiav.
Mounting Fixtures:Integrated tooj dag / stainless hlau threaded fittings (M14, M16, 1/2", 3/4 "BSP / NPT) los yog welded mounting flanges.
Kev tsim khoom
Tube Txiav & Deburring:Rotary txiav ntawm raw hlau tubing kom paub meej qhov ntev ntev nrog kev tshem tawm sab hauv burr.
Coiling & Pin Vuam:Winding NiCr hlau thiab tiv thaiv - vuam davhlau ya nyob twg tus pins.
Element Loading:Centering lub coil kuj nyob rau hauv lub hlau raj thiab backfilling nrog graded MgO hmoov.
Swaging / Txo:Hla lub raj thauj khoom los ntawm ntau-stage roller tuag kom compact MgO ntom dhau 2.4 g / cm³.
Annealing:Kev ntxhov siab -reliving lub raj hlau nyob rau hauv lub qhov cub tswj cua sov ua ntej yuav khoov.
M- Khoov:CNC hydraulic los yog mandrel dabtsi yog khoov kom ua tau raws li qhov ua tau zoo.
Sealing & Curing:Siv cov dej noo- thaiv cov sealants thiab thermal curing.
Kev Tswj Xyuas Zoo
Dimensional soj ntsuam:100%.
High-Pot Test:Dielectric tiv thaiv kev sim ntawm 1500V / 50Hz rau 60 vib nas this ntawm txhua pawg.
Rwb thaiv tsev Resistance Test:Megohmmeter pov thawj ntawm cov rwb thaiv tsev txias (Ntau dua lossis sib npaug ntawm 1000 MΩ).
Resistance Verification:Kev ntsuas tus choj tiv thaiv digital ntsuas pom tseeb wattage hauv +5% / -10% txwv.
Kev kuaj pom dej:Pneumatic underwater npuas kuaj rau immersion - qib units.
FAQ
Q: Dab tsi yog qhov tsawg kawg nkaus khoov vojvoog ua tiav?
A: Qhov tsawg kawg nkaus centerline khoov lub vojvoog yog 2.5 × lub raj sab nraud (piv txwv li, 25 hli vojvoog rau lub raj 10 hli) txhawm rau tiv thaiv MgO puas los yog phab ntsa thinning.
Q: Kuv yuav ua li cas hais txog qhov chaw txias unheated?
A: Qhia qhov tseeb unheated ntev los ntawm qhov kawg ntawm lub davhlau ya nyob twg mus rau qhov pib ntawm lub coil winding. Standard manufacturing kam rau ua yog ± 5 hli.
Q: Cov ntaub ntawv dab tsi uas kuv yuav tsum xaiv rau cov kua corrosive?
A: Siv Incoloy 800 rau siab - dej kub thiab tsis muaj zog acids mus txog 800℃. Xaiv 316L rau cov tshuaj me me thiab cov kua zaub mov. Siv titanium rau plating da dej thiab hnyav acids.
Q: Cov threaded fittings lossis mounting daim hlau puas tuaj yeem welded rau qhov chaw kev cai?
A: Yog. Brass lossis stainless hlau fittings thiab flanges tuaj yeem yog TIG welded rau cov haujlwm ntev ntev uas tau teev tseg ntawm engineering kos duab.
Q: Lub sij hawm ua cov txheej txheem yog dab tsi?
A: Cov qauv qauv kev cai xav tau 7 txog 10 hnub ua haujlwm. Kev txiav txim ntau lawm yuav tsum tau 15 mus rau 25 hnub ua hauj lwm.
Q: Cov ntaub ntawv xa khoom dab tsi suav nrog?
A: Txhua qhov khoom xa tuaj suav nrog Daim Ntawv Pov Thawj Ua Raws Cai (CoC), cov ntaub ntawv kuaj cov khoom siv zeb (MTRs) rau cov hlau sheath, thiab cov ntawv ntsuas hluav taws xob ib leeg.
